ISRO successfully carries out controlled re-entry of Megha-Tropiques-1 satellite

The estimated final impact region is in the deep Pacific Ocean within the expected latitude and longitude boundaries.


Published Mar 08, 2023 | 1:46 PMUpdatedMar 08, 2023 | 1:46 PM

ISRO decommissioned satellite re-entry

The Indian Space Research Organisation (ISRO) said it successfully carried out an “extremely challenging” controlled re-entry experiment of the decommissioned orbiting Megha-Tropiques-1 (MT-1) satellite.

“The satellite re-entered the Earth’s atmosphere and would have disintegrated over the Pacific Ocean,” the Bengaluru-headquartered national space agency announced on Twitter on Tuesday, 7 March.

The estimated final impact region is in the deep Pacific within the expected latitude and longitude boundaries, an ISRO statement said.

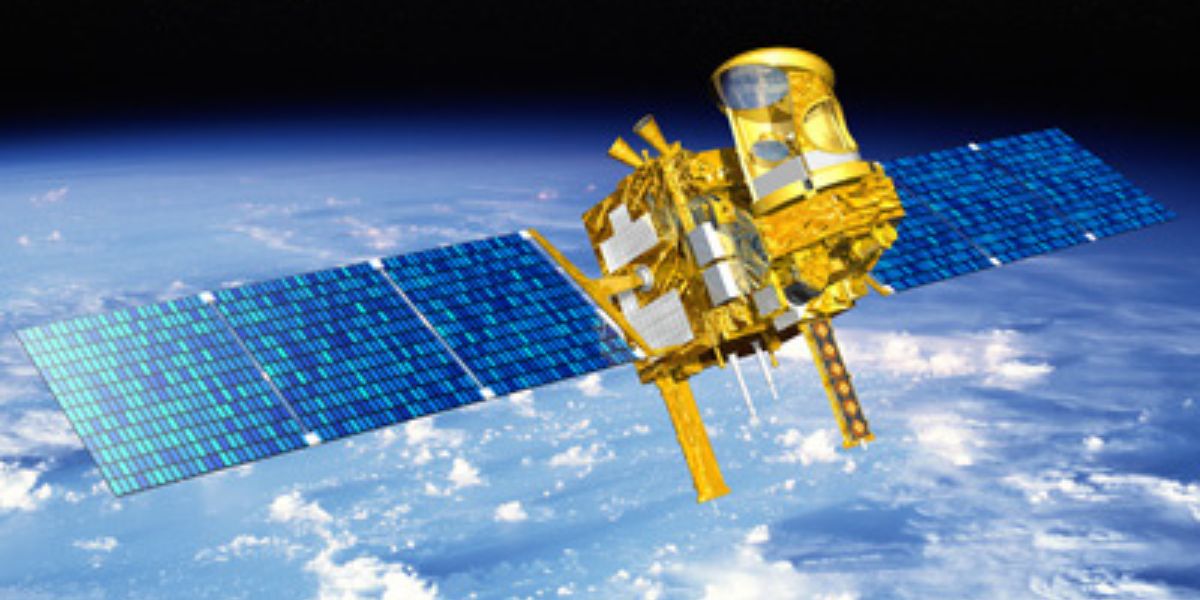

The low Earth satellite Megha-Tropiques-1 was launched on 12 October, 2011, as a joint satellite venture of ISRO and the French space agency, CNES, for tropical weather and climate studies.

Progressively lowered the satellite

Since August 2022, the satellite’s perigee was progressively lowered through a series of 20 manoeuvres, spending about 120 kg of fuel.

Multiple manoeuvres, including the final de-boost strategy, were designed after considering several constraints, including visibility of the re-entry trace over ground stations, ground impact within the targeted zone, and allowable operating conditions of subsystems, especially the maximum deliverable thrust and the maximum firing duration constraint on thrusters.

All manoeuvre plans were screened to ensure that there would be no post-manoeuvre close approaches with other space objects, especially with the crewed space stations such as the International Space Station and the Chinese Space Station, ISRO said.

The final two de-boost burns were executed at 11:02 UTC (Coordinated Universal Time or Universal Time Coordinated) and 12:51 UTC, respectively, on 7 March by firing four 11 Newton thrusters on-board the satellite for about 20 minutes each, it said.

Prior to 1972, UTC was known as the Greenwich Mean Time. The Indian Standard Time is 5.30 hours ahead of the UTC.

Also read: ISRO places 3 satellites in orbit in maiden success of SSLV programme

ISTRAC-controlled operation

The final perigee was estimated to be less than 80 km, indicating that the satellite would enter the denser layers of the Earth’s atmosphere and subsequently undergo structural disintegration. The re-entry aero-thermal flux analysis confirmed that there would be no surviving large fragments of debris.

The entire sequence of events was carried out from the Mission Operations Complex in ISTRAC (ISRO Telemetry, Tracking and Command Network), Bengaluru.

An uninhabited area in the Pacific Ocean between 5 S to 14 S latitude and 119 W to 100 W longitude was identified as the targeted re-entry zone for Megha-Tropiques-1, weighing about 1,000 kg, ISRO said earlier this week.

About 125 kg on-board fuel remained unutilised at its end-of-mission which posed an accidental break-up risk, an ISRO statement had noted.

This left-over fuel was estimated to be sufficient to achieve a fully controlled atmospheric re-entry to impact the uninhabited location in the Pacific Ocean, ISRO had said.

Controlled re-entry

Controlled re-entries involve de-orbiting to very low altitudes to ensure impact occurs within a targeted safe zone.

Usually, large satellites/rocket bodies, which are likely to survive aero-thermal fragmentation upon re-entry, are made to undergo controlled re-entry to limit ground casualty risk.

However, all such satellites are specifically designed to undergo controlled re-entry at the end-of-life (EOL).
“MT-1 was not designed for EOL operations through controlled re-entry which made the entire exercise extremely challenging,” ISRO said.

Furthermore, the onboard constraints of the aged satellite, where several systems had lost redundancy and showed degraded performance, and maintaining sub-systems under harsher environmental conditions at much lower than originally designed orbital altitude added to the operational complexities, it said.

Innovative workarounds were implemented by the operations team based on the study, deliberations, and exchanges among the mission, operations, flight dynamics, aerodynamics, propulsion, controls, navigation, thermal, and other sub-system design teams across the ISRO centres, who worked in synergy to surmount these challenges, it said.

Also read: India’s first privately developed rocket lifts off successfully

Transmitted data beyond the mission life

Although the mission life of the satellite originally was three years, it continued to provide valuable data services for more than a decade supporting regional and global climate models till 2021, ISRO said.

UN/IADC (Inter-Agency Space Debris Coordination Committee) space debris mitigation guidelines recommend de-orbiting an LEO (Low Earth Orbit) object at its EOL, preferably through controlled re-entry to a safe impact zone, or by bringing it to an orbit where the orbital lifetime is less than 25 years, ISRO said.

It is also recommended to carry out “passivation’ of onboard energy sources to minimise the risk of any post-mission accidental break-up, the space agency said.

It said the orbital lifetime of Megha-Tropiques-1 would have been more than 100 years in its 20 deg inclined operational orbit of 867 km altitude.

“As a responsible space agency committed to safe and sustainable operations in outer space, ISRO proactively takes efforts for better compliance with the UN/IADC space debris mitigation guidelines on post-mission disposal of LEO objects”, the ISRO statement said.
